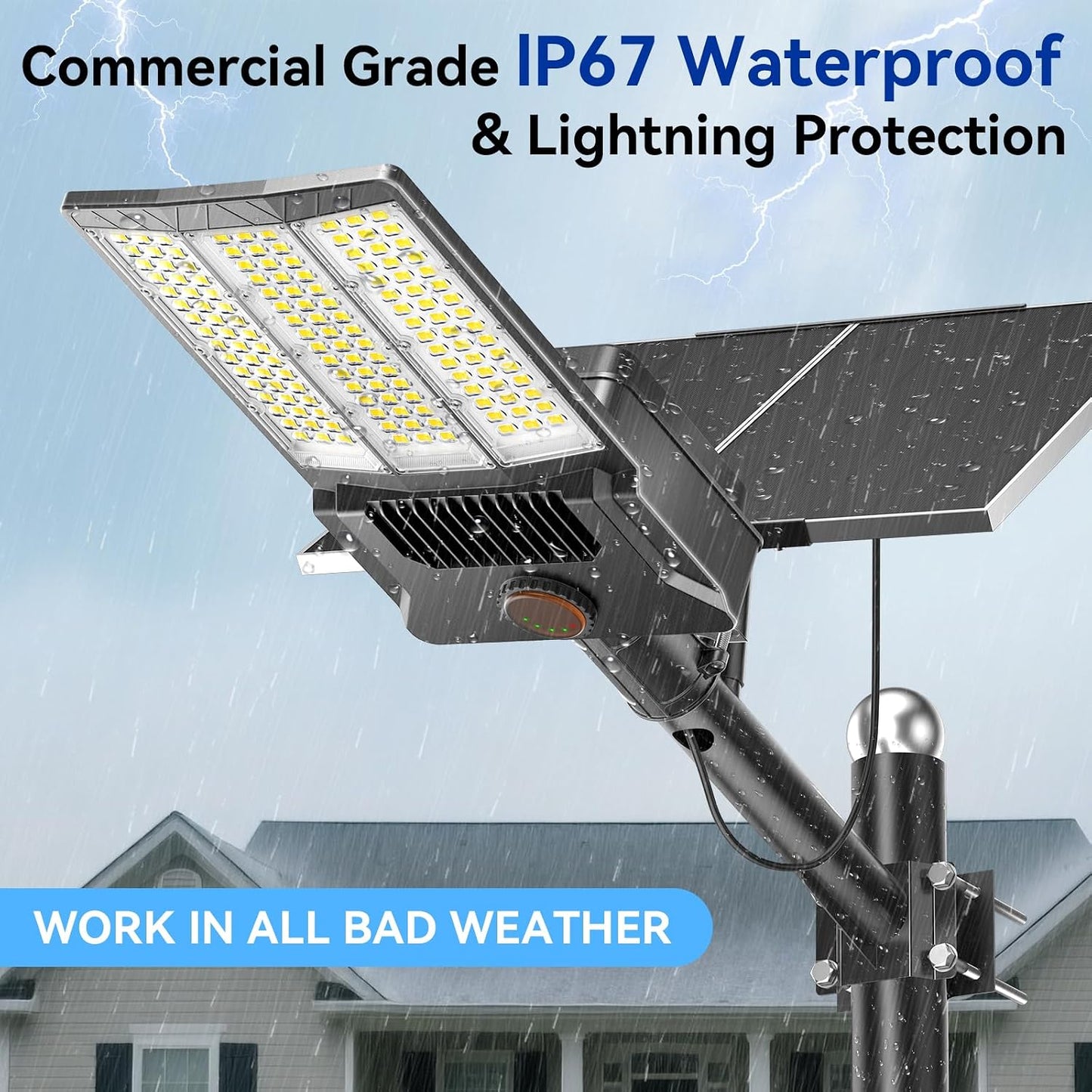

- Commercial Solar Area Light Pole/Wall Mount

PRODUCT TYPE Solar LED street / area light

LIGHTING OF TOMORROW MODEL LOT-SZ400

PRODUCT POWER CLASS 15000W designation

HOUSING / FINISH Aluminum alloy / black

OUTDOOR RATING IP67

OPERATING TEMPERATURE -4 F to 158 F (-20 C to 70 C)

RECOMMENDED MOUNTING HEIGHT 20-26 ft (6.1-7.9 m)

CLAIMED COVERAGE AREA Up to 4,800-5,200 sq ft

CONTROL Dusk-to-dawn + remote control

MOTION SENSING PIR motion-sensor mode

BRIGHTNESS ADJUSTMENT 10%-100%

TIMER SETTINGS 2 / 4 / 6 / 8 hours

DIMENSIONS & MOUNTING

FIXTURE BODY Approx. 9.06 W x 21.65 H in

DUAL SOLAR-PANEL ASSEMBLY Approx. 19.68 W x 20.87 H in

MOUNTING-ARM LENGTH Approx. 20.87 in

COMPATIBLE ROUND POLE 1.7-3.7 in diameter

PANEL ADJUSTMENT 0-180 degrees

INSTALLATION Pole, wall or suitable outdoor structure

OPERATION

AUTO Turns on at dusk and off at dawn.

ALWAYS BRIGHT Constant illumination at selected brightness.

MOTION SENSOR Boosts to full brightness when motion is detected.

BRIGHTNESS Remote adjustment from 10% to 100%.

TIMER Selectable 2, 4, 6 or 8-hour operation.

STANDARD PACKAGE
