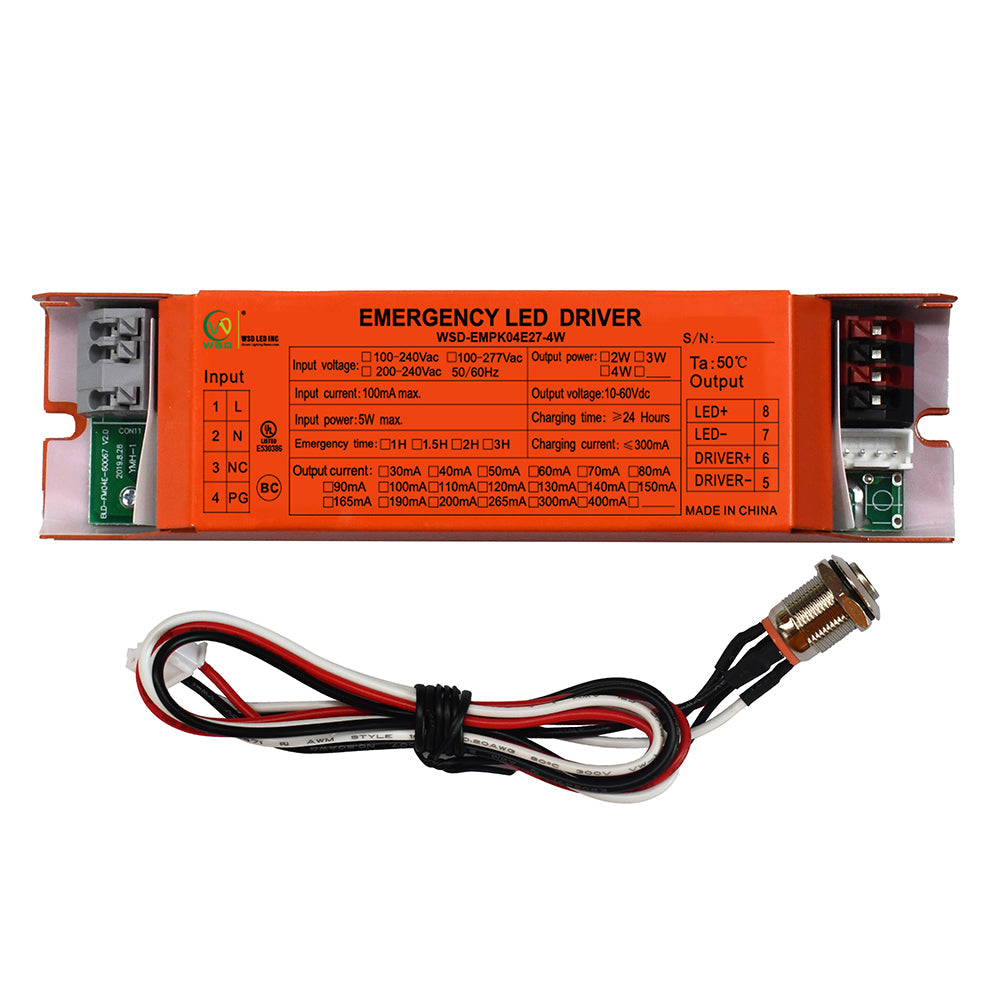

4W Emergency Backup Battery Driver 100-277Vac WSD-EMPK04E27-4W
4W Emergency Backup Battery Driver 100-277Vac WSD-EMPK04E27-4W
Couldn't load pickup availability
Description
Description
4W Emergency Backup Battery Driver 100-277Vac WSD-EMPK04E27-4W
Output Power: 4 W
Universal Input Voltage:100-277 Vac,50/60 Hz
AC Input Current :100 mA max.
AC Input Power Rating : 5.0 W max.
Output Current and Voltage:30-400 mA
10-60 Vdc
Full Warranty :5 Years
Test Switch Indicator Light: Illuminated Test Switch, indicator Light
Battery: Li-ion battery-3.7 V / 2500 mAh
Battery Charging Current:300 mA max.
Charging Time ≥24 Hours
Temperature Rating (Ambient) :Li-ion 0°C to +50°C (32°F to 120°F)

| Part Number | 201.0438 |
| Wattage | 4 |
| Voltage | 100-277 |
| Lumens | N/A |
| Color Temperature (CCT) | N/A |
| Wattage Tunable | No |
| CCT Tunable | No |
| Dimmable | N/A |
| Primary Housing Color | N/A |
| Multiple Housing Color Options | No |
| Certificate | UL |
| Dimensions | Dimensions: 5.5''x1.37''x0.86'' |
| Remark | 500 cycles of charge and discharge |
| ToQ | No |
| Minimum Quantity | 1 |
Download PDF:
Click here to Download
