30 Foot Steel 5 Inch Square Light Pole // WSD-30FT5-11G-D-T


Price:
$0

Description

Product Description

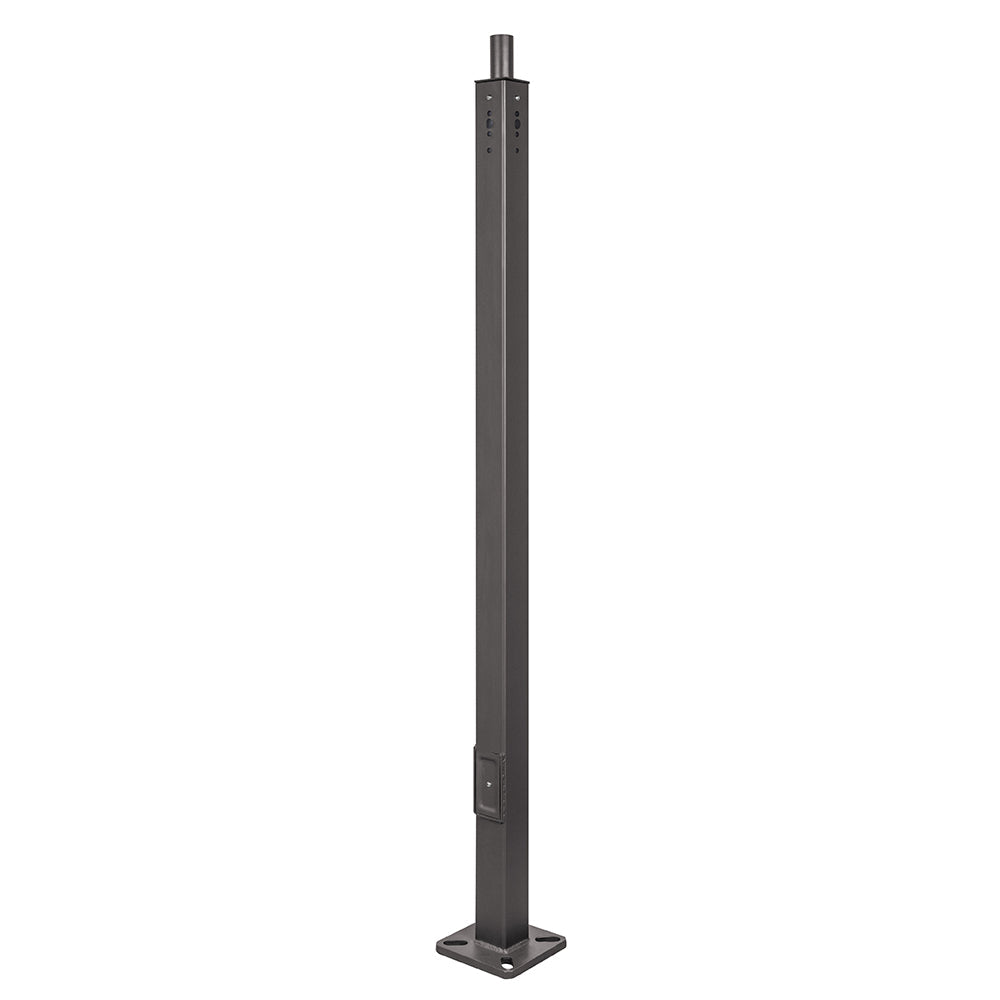

This square steel light pole has a 30 foot height and 5 inch width from top to bottom with a wall thickness gauge of 11 and maximum EPA rating of 3.25 at 120 mph. To see the full specifications for this pole please refer to its specification sheet:
All materials used in manufacturing this light pole are commercial quality, weldable grade, hot rolled carbon steel tubing and all welds confirm to AWS D1.1 using E70xx electrodes.

This light pole includes a set of 4 galvanized steel anchor bolts for a bolt circle diameter of 10-12 inches, a 2 piece metal base cover, reinforced handhole with steel cover and stainless steel screws. Materials for the base plate and handhole cover conform to ASTM A36 standards. This light pole is only available in dark bronze.


                    Download:

                     Size drawing For 30FT5-D-T.pdf
                     Straight Square Steel Poles.pdf
                     FIG. 1 for flange openings of 5-inch square steel Pole Light.pdf
