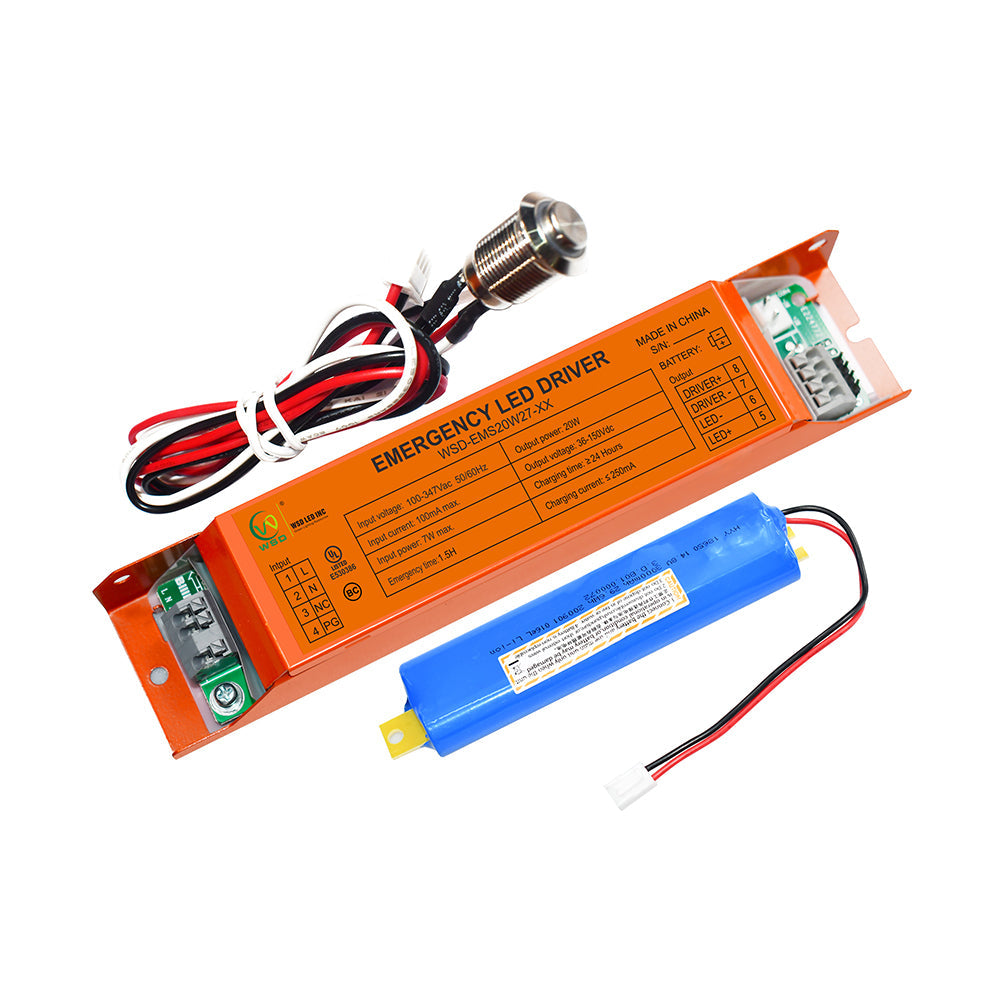

20W Split Built-In Emergency Backup Battery Driver WSD-EMS20W27-XX
20W Split Built-In Emergency Backup Battery Driver WSD-EMS20W27-XX
Regular price
$147.50 USD
Regular price
Sale price
$147.50 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
20W Split Built-In Emergency Backup Battery Driver WSD-EMS20W27-XX
Output Power: 20W
Universal Input Voltage: 100-347Vac,50/60Hz
AC Input Current: 100mA max.
AC Input Power Rating: 7.0W max.
Output Voltage: 36-150Vdc
Emergency Time ≥1.5H
Full Warranty: 5 Years
Test Switch Indicator Light Illuminated Test Switch, indicator Light
Battery Charging Current :≤350 mA
Charging Time: 24 Hours
Temperature Rating (Ambient): Li-ion 0°C to 50°C (32°F to 122°F)

| Part Number | 201.0418 |
| Wattage | 20 |
| Voltage | 100-347 |
| Lumens | N/A |
| Color Temperature (CCT) | N/A |
| Wattage Tunable | No |
| CCT Tunable | No |
| Dimmable | N/A |
| Primary Housing Color | N/A |
| Multiple Housing Color Options | No |
| Certificate | UL |
| Dimensions | Dimensions: 7.4''x1.5''x1.14'' |
| Remark | 500 cycles of charge and discharge |
| ToQ | No |
| Minimum Quantity | 1 |
Download PDF:
Click here to Download
