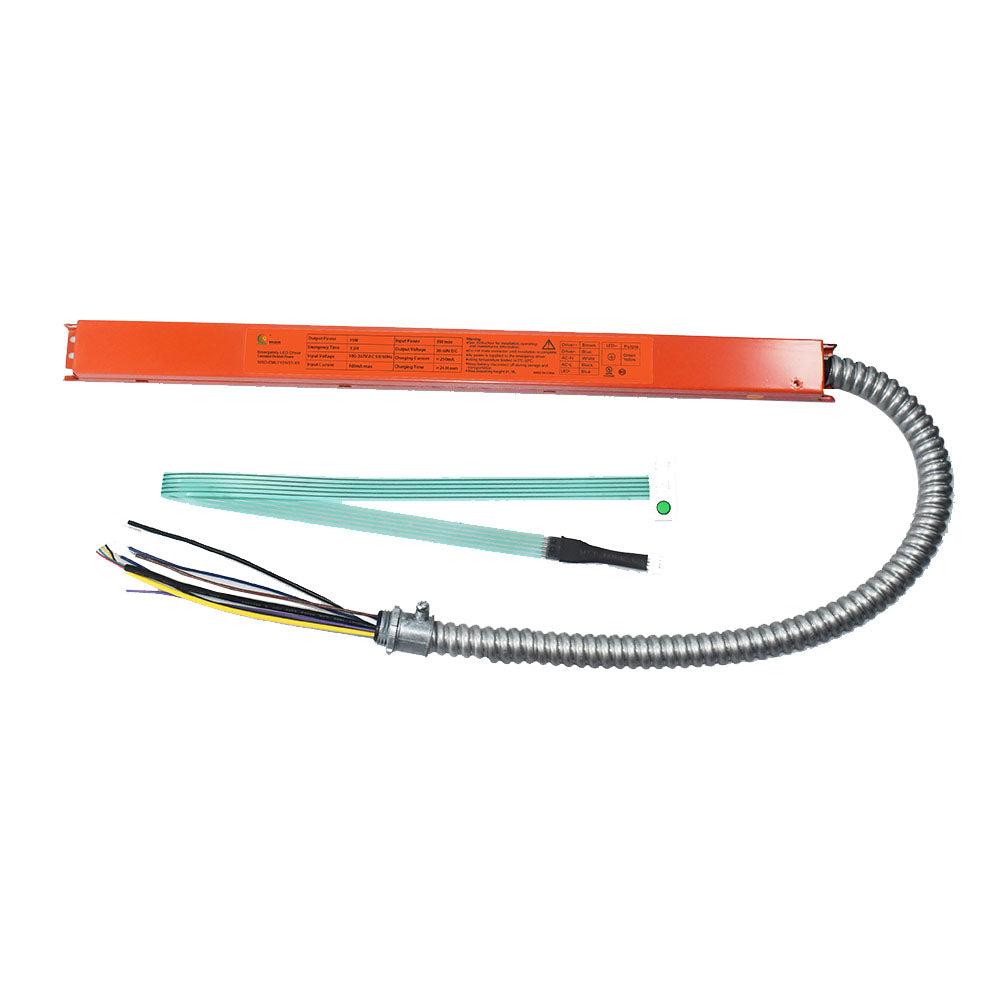

15W Emergency Backup Battery LED Driver For Back-Lit LED Panel Light WSD-EMLY15W27-XX
15W Emergency Backup Battery LED Driver For Back-Lit LED Panel Light WSD-EMLY15W27-XX
Regular price
$155.00 USD
Regular price
Sale price
$155.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
15W Emergency Backup Battery LED Driver For Back-Lit LED Panel Light WSD-EMLY15W27-XX
Application: Back-Lit Panel
Input Voltage: 100-347V AC 50/60HZ
AC Input Current: 100mA max
AC Input Power Rating: 7.0W max
Output Voltage: 30V-60V
Output Power: 15W max
Illumination Time: 90 Minutes
Battery Charging Current: ≤ 250mA
Recharge Time: ≥24Hours
Temperature Rating Ambient: 0°C to + 50°C (32°FF to 122°F)
| Part Number | 201.0311 |
| Wattage | 15 |
| Voltage | 100-347 |
| Lumens | N/A |
| Color Temperature (CCT) | N/A |
| Wattage Tunable | No |
| CCT Tunable | No |
| Dimmable | N/A |
| Primary Housing Color | N/A |
| Multiple Housing Color Options | No |
| Certificate | UL |
| Dimensions | Dimensions: 17.7''x1.26''x0.83'' |
| Remark | 500 cycles of charge and discharge |
| ToQ | No |
Download PDF:
Click here to Download
