12W-30W Selectable LED Architectural Wall Pack Light with Photocell AC120-277V WSD-AFW12182430W27-345K-D-P
12W-30W Selectable LED Architectural Wall Pack Light with Photocell AC120-277V WSD-AFW12182430W27-345K-D-P
Regular price
$112.50 USD
Regular price
Sale price
$112.50 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description

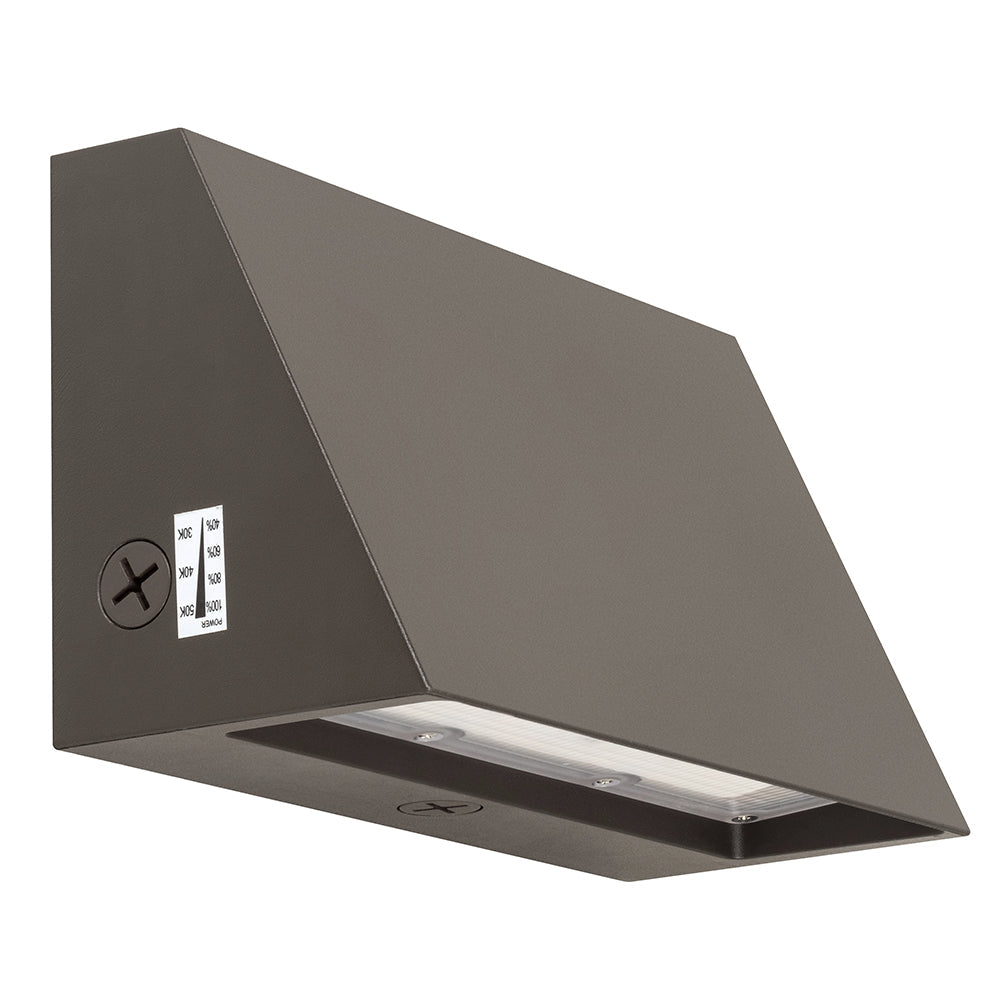

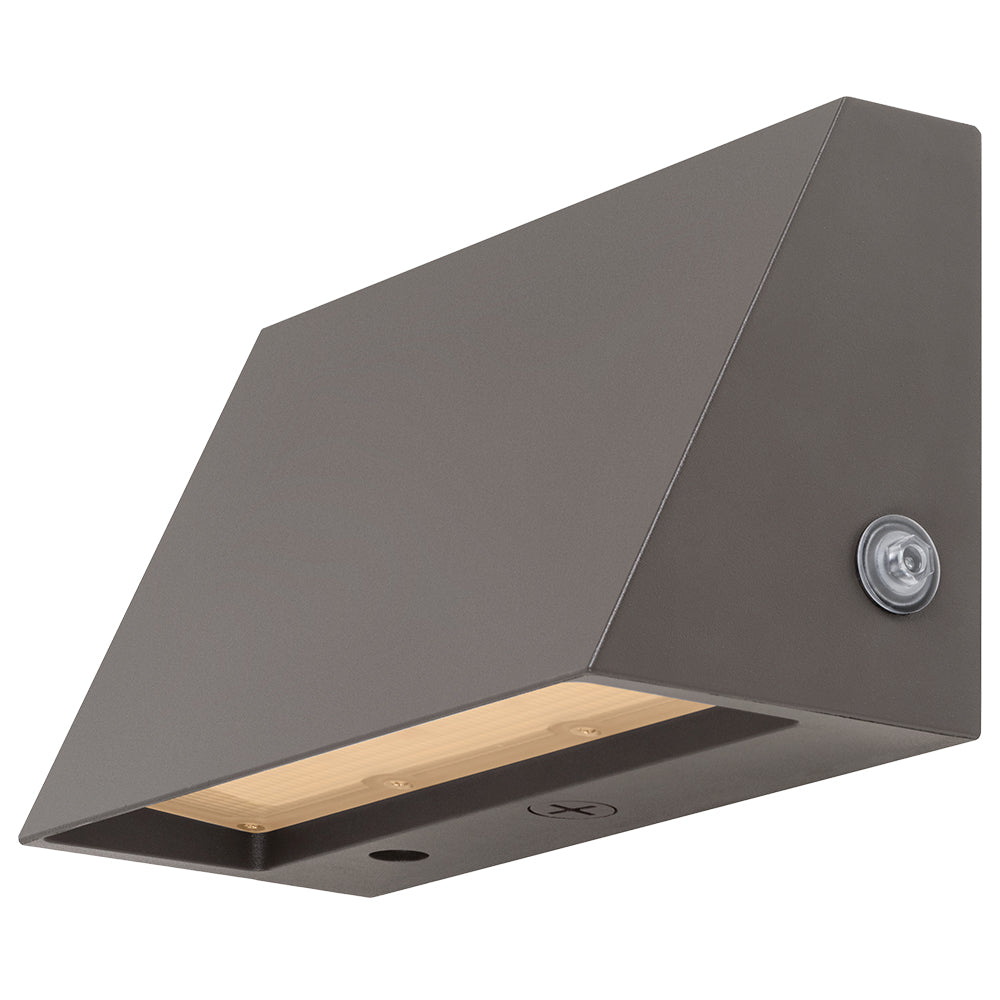

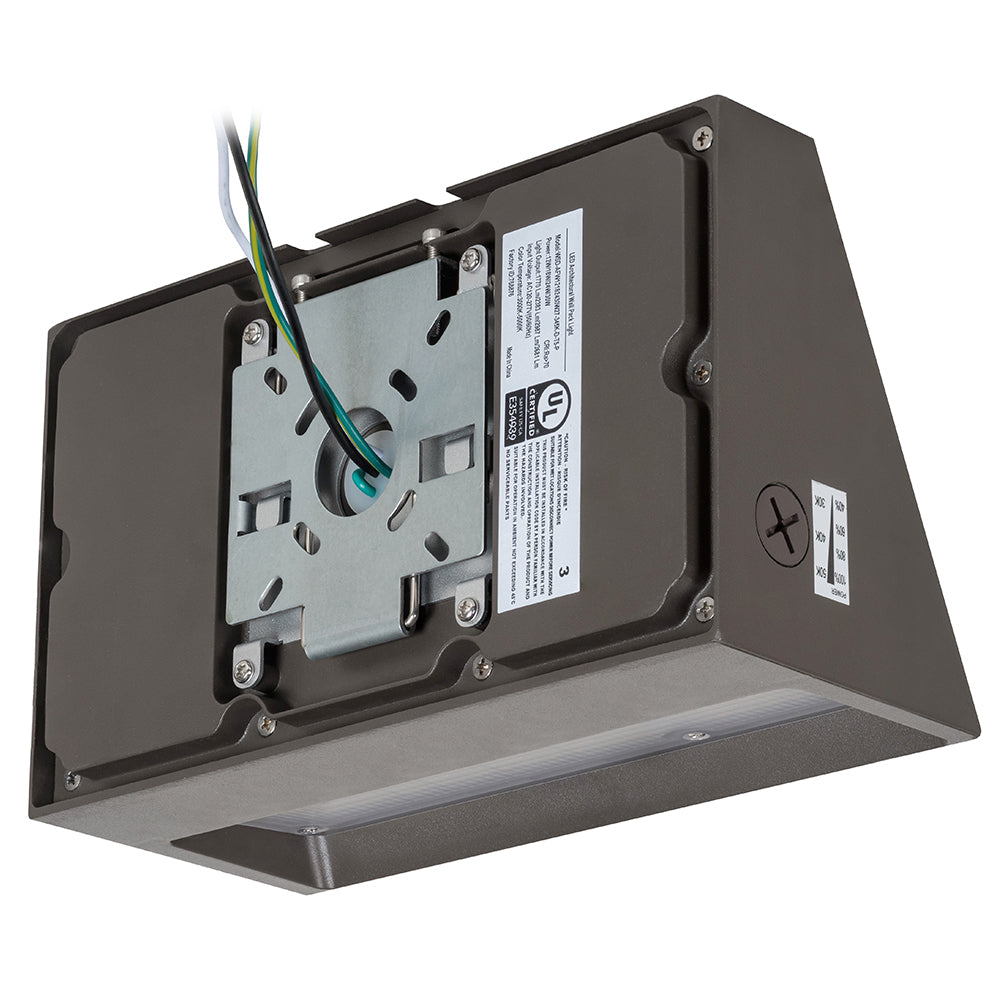

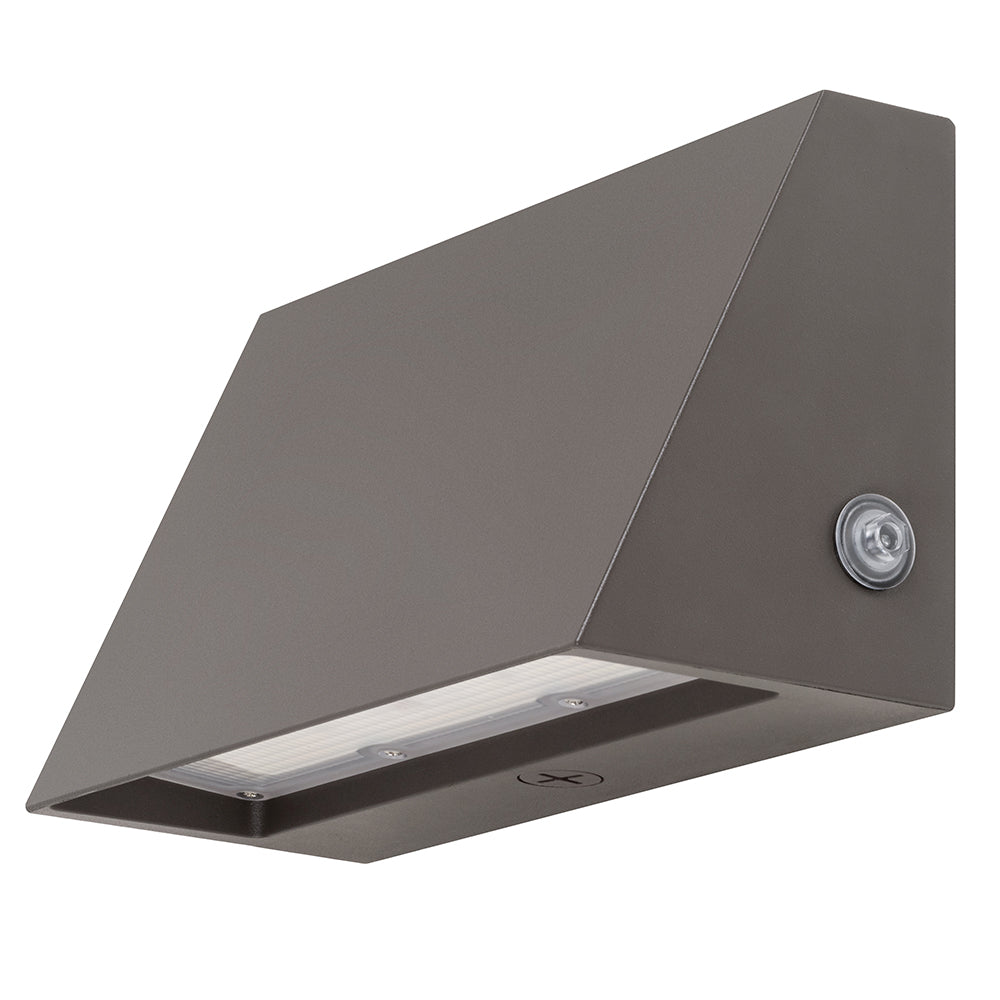

12W-30W Selectable LED Architectural Wall Pack Light with Photocell AC120-277V WSD-AFW12182430W27-345K-D-P
Power: 12W / 18W / 24W / 30W
Input: AC 120-277V
CCT: 3000K / 4000K / 5000K
Output: 12W 1608 LM / 1704 LM / 1680 LM
18W 2340 LM / 2520 LM / 2448 LM
24W 3024 LM / 3264 LM / 3120 LM
30W 3630 LM / 3960 LM / 3750 LM
| Part Number | 903.0384 |
| Wattage | 12/18/24/30 |
| Voltage | 120-277 |
| Lumens | 12W 1608 LM / 1704 LM / 1680 LM 18W 2340 LM / 2520 LM / 2448 LM 24W 3024 LM / 3264 LM / 3120 LM 30W 3630 LM / 3960 LM / 3750 LM |
| Color Temperature (CCT) | 3000/4000/5000 |
| Wattage Tunable | Yes |
| CCT Tunable | Yes |
| Dimmable | 1-10V dimming |
| Primary Housing Color | Bronze |
| Multiple Housing Color Options | No |
| Certificate | UL & DLC Listed |
| Dimensions | Dimensions: 9.91”X5.8”X4.37” |
| Remark | Life span: ＞50000 hours |
| ToQ | No |
Download PDF:
Click here to Download
